Leica RTC360 3D Scanner

The Leica RTC360 3D reality capture solution empowers users to document and capture their environments in 3D, improving efficiency and productivity in the field and in the office through fast, simple-to-use, accurate, and portable hardware and software. The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D representations and discover the possibilities of any site.

- Highly portable, highly automated, intuitive and designed for maximum productivity, the RTC360 solution efficiently combines the RTC360 a high-performance 3D laser scanner, Leica Cyclone FIELD 360 mobile-device app for edge
computing for automatically registering scans in real time, and Leica Cyclone REGISTER 360 PLUS office software to integrate your 3D model seamlessly into your workflow.
- Capture scans, including enriching High-Dynamic Range (HDR) imagery, in less than two minutes.
- Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.
- Augment your data capture with information tags illustrating the opportunities for better planning, reflect site reality, and boost your teams’ situational awareness
- Directly publish your captured data from Cyclone FIELD 360 to Reality Cloud Studio, powered by HxDR.

Fast

The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of coloured 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximise productivity.

Agile

Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.

Precise

Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.

Specifications:

GENERAL
- 3D laser scanner: High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration

PERFORMANCE
- Data acquisition: <2 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution
- Real time registration: Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by videoenhanced inertial measurement unit
- Double scan: Automatic removal of moving objects
- Check & Adjust: Field procedure for targetless checking of angular parameters

SCANNING
- Distance measurement: High-speed, high dynamic time of flight enhanced by Waveform Digitising (WFD) technology
- Laser class: 1 (in accordance with IEC 60825-1:2014), 1550 nm (invisible)
- Field of view: 360° (horizontal) / 300° (vertical)
- Range: Min. 0.5 - up to 130 m
- Speed: Up to 2,000,000 pts / sec
- Resolution: 3 user selectable settings (3/6/12 mm @ 10 m)
- Accuracy:
  * Angular accuracy 18”
  * Range accuracy 1.0 mm + 10 ppm
  * 3D point accuracy
  * 1.9 mm @ 10 m
  * 2.9 mm @ 20 m
  * 5.3 mm @ 40 m
- Range noise: 0.4 mm @ 10 m, 0.5 mm @ 20 m

IMAGING
- Camera: 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° x 300° spherical image
- Speed: 1 minute for full spherical HDR image at any light condition
- HDR: Automatic, 5 brackets

NAVIGATION SENSORS
- Visual Inertial System: Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time
- Tilt: IMU based, Accuracy: 18“ (for upright and upside down setups with +/- 10° inclination)
- Additional sensors: Altimeter, Compass, GNSS

OPERATION
- On scanner: Touch-screen control with finger touch, full colour WVGA graphic display 480 x 800 pixels
- Mobile devices: Leica Cyclone FIELD 360 app for iOS and Android tablet computers and smartphones including:
  * Remote control of scan functions
  * 2D & 3D data viewing
  * Tagging
  * Automatic alignment of scans
- Wireless: Integrated wireless LAN (802.11 b/g/n)
- Data storage: Leica MS256, 256 GB exchangeable USB 3.0 flash drive

DESIGN & PHYSICAL
- Housing: Aluminium frame and sidecovers
- Dimensions: 120 mm x 240 mm x 230 mm / 4.7‘‘ x 9.4‘‘ x 9.1‘‘
- Weight: 5.35 kg / 11.7 lbs, nominal (without batteries)
- Mounting mechanism: Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available

POWER
- Internal battery: 2 x Leica GEB364 internal, rechargeable Li-Ion batteries.
  Duration: Typically up to 4 hours
  Weight: 340 g per battery
- External: Leica GEV282 AC adapter

ENVIRONMENTAL
- Operating temperature: -5° to +40°C
- Storage temperature: -40° to +70°C
- Operating low temperatures: -10° to +40°C
- Dust/Humidity: Solid particle/liquid ingress protection IP54 (IEC 60529)

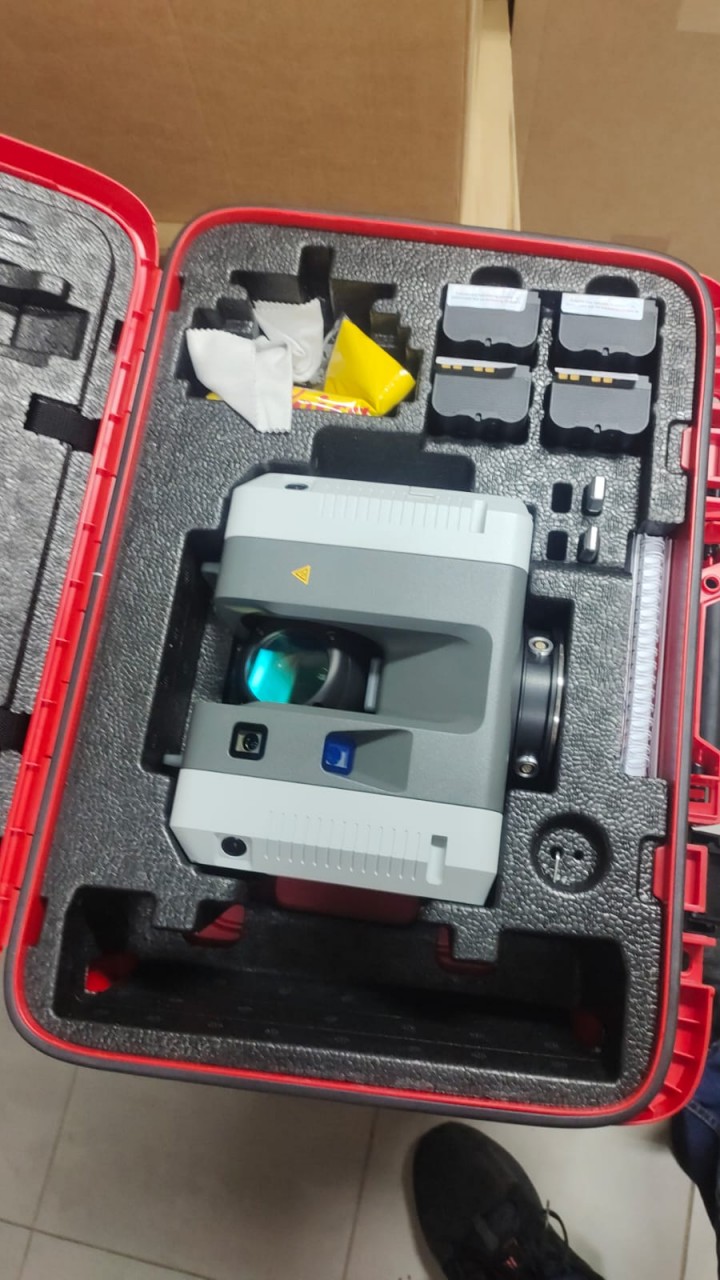

Package Includes:

- RTC360 Laser Scanner
- GVP730 hard carrying case
- GEB361 batteries (4)
- GKL341 Multicharger Pro
- RTC360 Flash Drive- 256GB (2)
- RTC360 Rain Cover
- 1 year RTC360 CCP Basic
- Quick Guide
- System USB Card
- Backpack and tripod
